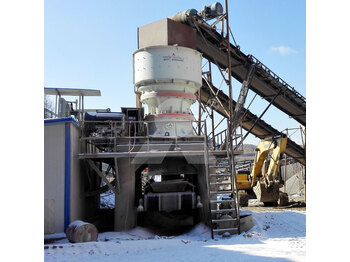

جديد كسارة مخرو LIMING Hot Sale Mining Stone Crusher Rock Cone Crusher

HST Hydraulic Cone Crusher integrates machinery, hydraulic pressure, electrics, automation and intelligent control together, which can be used for medium crushing, fine crushing and ultra-fine crushing. With full automatic control system, this machine can realize accurate regulation.

Applications: Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.

Features

Unique interparticle crushing action

1.HST high performance hydraulic cone crusher feature a unique combination of crusher speed, throw, cavity design.

2.Inter-particle crushing works between materials that increases the working life of mantle and bowl liner.

3.Provide a more consistent gradation and superior products (cubicity). Better performance in the construction and sand making area.

Automatic control system in an all-round way

1.Real-time displays the specification of crushing, hydraulic and lubrication in operation.

2.It can realize unmanned operation by continuously measuring and automatic setting system.

3.Dynamic adjustment of motor power and crusher pressure under working reduces the unnecessary losses made by human error and maximize energy into production.

Humanized CSS adjusting system

1.Constant load setting:The CSS will be adjusted automatically according to the changes of the feeding size, moisture and hardness of the material and make sure the load of the crusher is constant.

2.Constant CSS setting: Once the CSS is set, the output will be kept by continuously measuring and compensating for crusher liner wear.

Floating main shaft

1.The CSS can be adjusted on load.

2.The flexible gradation adjustment will save the production cost while increasing the benefits.

Movable cone with shape of steep mantle and concave shape

1.The mantle has basic angel between 53°-56°, which will reduce the influence of the capacity due to the moisture content.

2.Design with deeper crushing cavity will optimize HST hydraulic cone crusher with more crushing times and higher efficiency.

Safe and reliable

1.Hydraulic system: The design pressure of the sealing elements is 20MPA, the maximum working pressure is 4PMA. Pressure margin produced by the higher pressure improves the reliability of operation.

2.Air cooling system avoids the disadvantage of water cooling system, such as lack of water and leakage of water.

3.Adoption of international first-class brand controller, such as Winner, sun, Danfoss, mts, etc.
